ZU 832
Reliable Separating

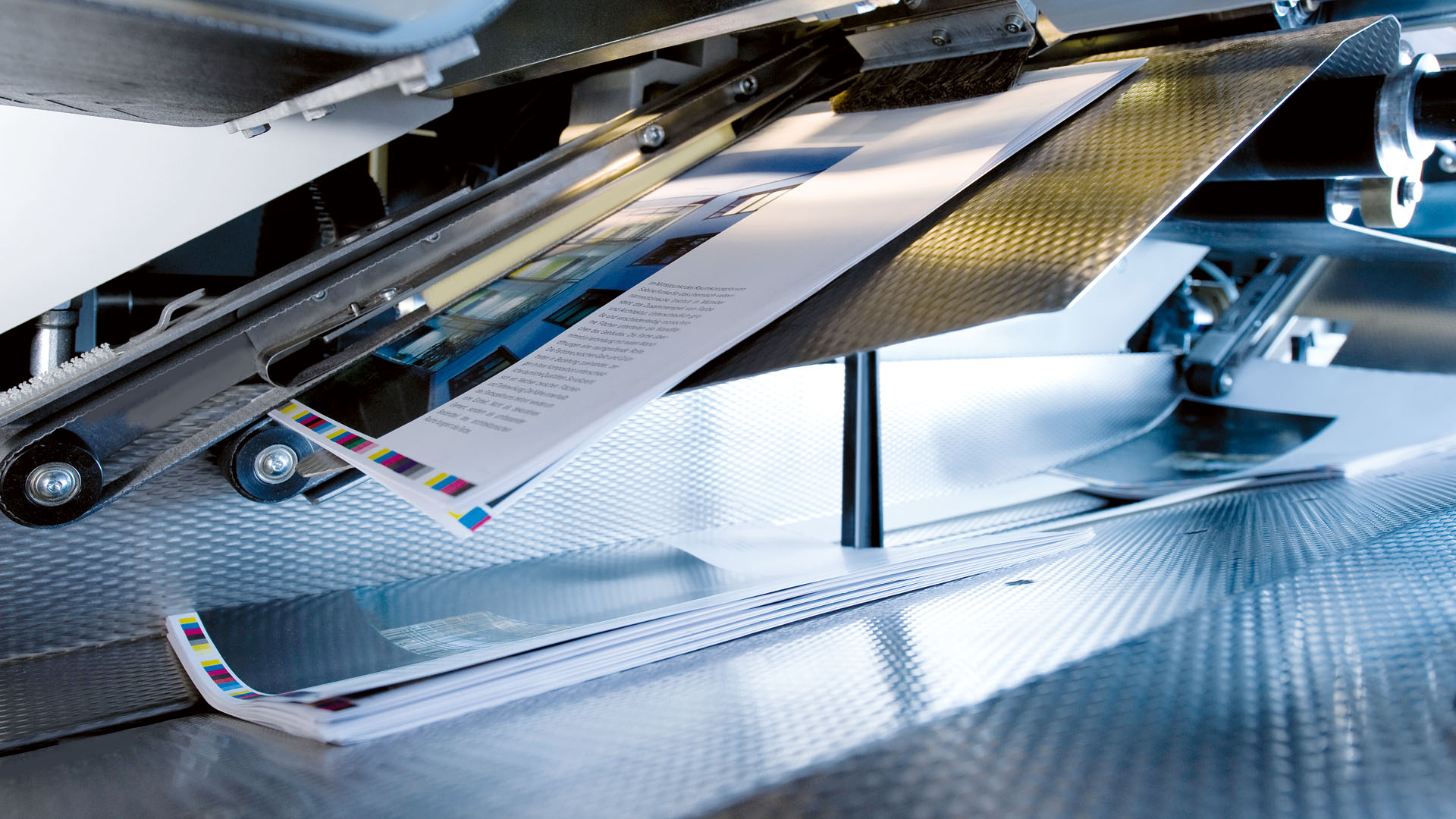

The ZU 832 gathering machine separates on the basis of the proven vacuum belt principle with a three-piece modular design. Thanks to its numerous configuration options, it is especially suited for use in the mid performance range of 8,000 to 12,000 cycles per hour. The ZU 832 provides optimal access, can be operated ergonomically and features manual or automated loading.
Large range of formats
High degree of reliability
Using the vacuum belt principle for straightline section transport with no pre-acceleration, it separates the signatures with a high degree of reliability.
High Quality
A signature control and optical layer recognition system ensure high process reliability. Top-class quality is also assured across a broad array of materials.
| Speed | 12’000 cycles/h |
| Format min. | 150 x 120 mm |
| Format max. | 380 x 310 mm |
| Thickness signature max. | 3 mm |
| Raceway clearance max. | 80 mm |
| Number of feeder stations max. | 27 |
