ZU 842
A Completely Modular Design Makes It Flexible

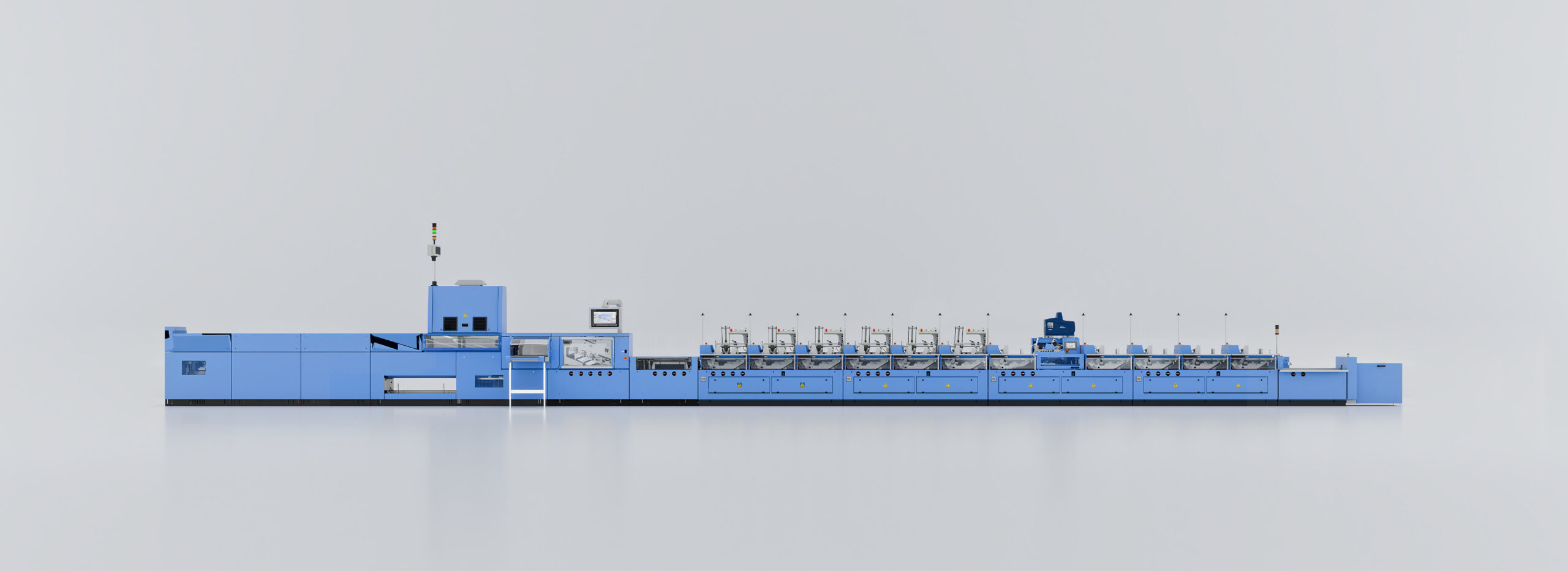

The ZU 842 vacuum belt gathering machine has a completely modular design, offering you flexibility and expansion options with no limits. The gathering machine has 9 to 24 feeding stations and a performance range of up to 18,000 cycles per hour and it is especially suited for producing a comprehensive product range. A signature control and an optical layer recognition system ensure high process reliability.
Secure processing

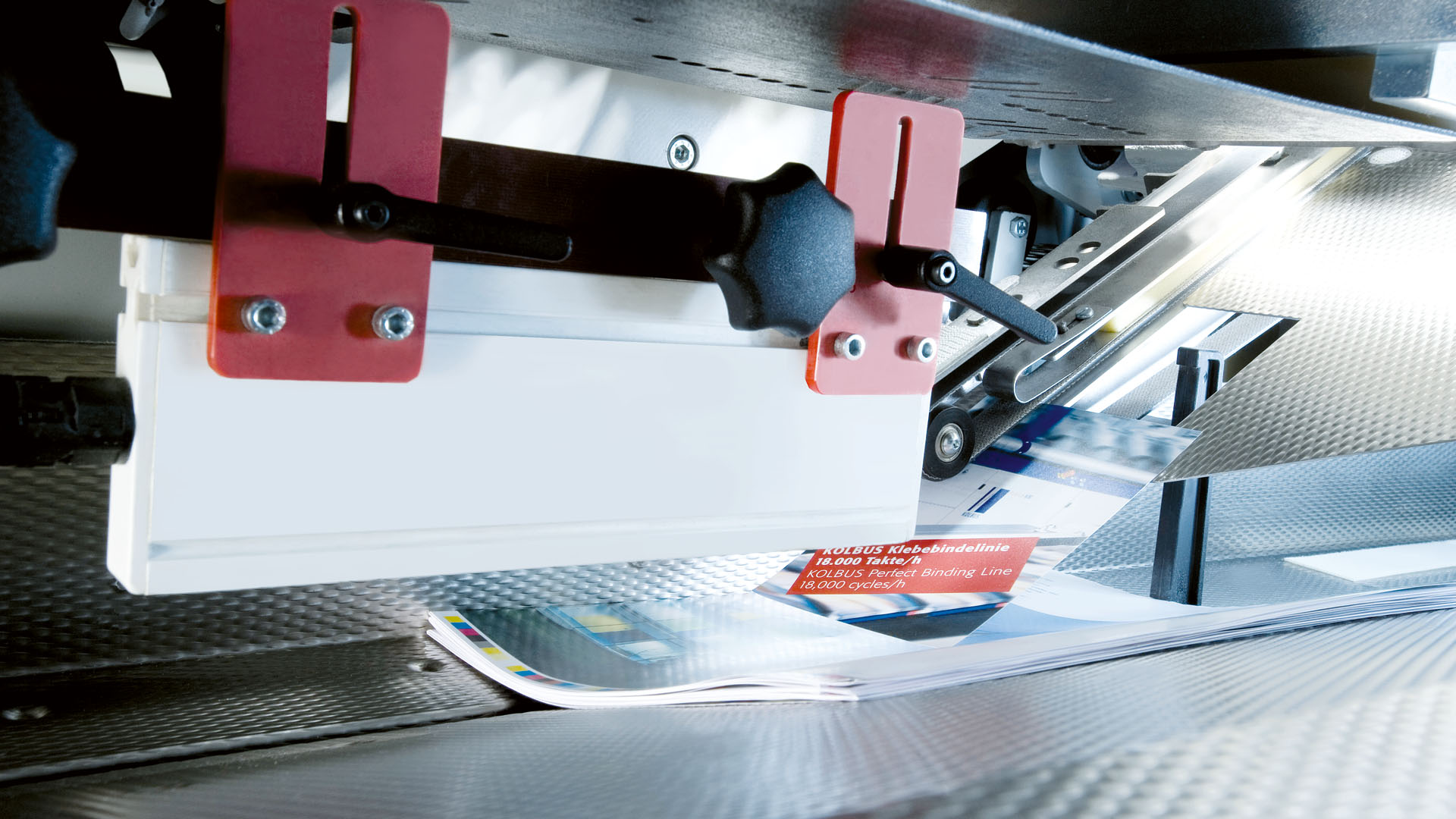

Extremely reliable signature separation up to a maximum spine length of 510 mm based on the vacuum belt principle for straightline section transport with no pre-acceleration.
High Flexibility
Depending on the configuration, a variety of advertising mediums can be processed with card gluers or the electrostatic attachment of inserts and fold-out signature feeders.
Efficient Loading
The STA 842 bundle feeder enables extremely efficient loading of the gathering machine.
| Speed | 12’000 / 15’000 / 18’000 cycles/h |
| Format min. | 105 / 105 / 140 x 105 mm |
| Format max. | 510 / 420 / 360 x 320 mm |
| Thickness signature max. | 3 mm |
| Raceway clearance max. | 60 / 80 mm |
| Number of feeder stations max. | 24 |
